Zenition 90 Motorized

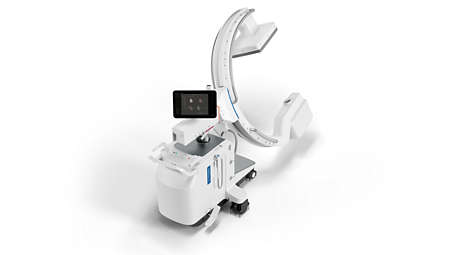

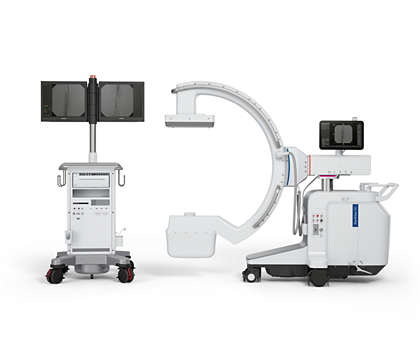

Motorized and impressively fast, the Philips Image Guided Therapy Mobile C-arm System 9000 – Zenition 90 Motorized is an intuitive C-arm that efficiently delivers state-of-the art image quality for the most challenging procedures. The system allows for automated workflows with its versatile motion, image controls and advanced software solutions.

Features

Independence in the OR

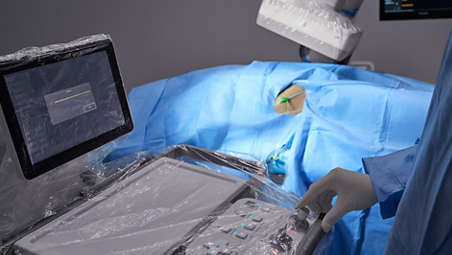

Gain flexibility and independence by controlling the C-arm's motion via the Table Side Operator. Operate the fast and smooth 4-axes motorization from the table-side, avoiding sterility breaks. Activate the angulation and rotation movements with a single joystick, for optimal control at variable speeds of up to 15 degrees per second. 90% of users believe motorized movement could help save time during procedures.¹ High power and endurance

Perform a variety of procedures even with steep angles and on dense anatomies, with 25 kW or 15 kW power, and achieve excellent image quality. Active oil circulation and improved heat management boost the system's performance even further, allowing for longer fluoroscopy and extended procedure times to better support demanding procedures. Greater control

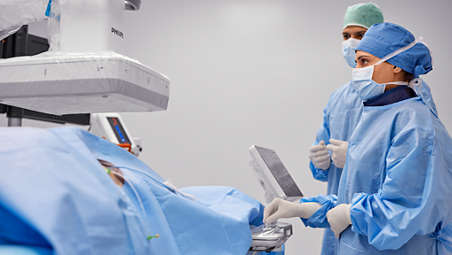

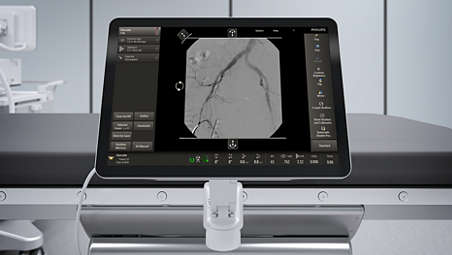

The Touch Screen Module provides a user-friendly experience with a familiar tablet-like interface. This results in hassle-free communications and greater control, with the ability to easily handle the C-arm image functions directly from the table-side. Adjust image parameters, collimate, rotate and swipe through images, all with a fingertip. 96% of physicians believe the Table Side Operator and Touch Screen Module could help accelerate procedures.² Safe and accurate motion

The smooth motorization of the Zenition 90 Motorized brings greater control and independence, while the BodyGuard collision prevention system allows users to take full advantage of its fast speed. BodyGuard, with its sensors placed inside the C-arm detector, senses the patient's body at a distance preventing unintentional contact.

Technical Specifications

X-ray generator: Monoblock 40 KHz high frequency generator, Maximum generator output: 15 kW or 25 kW, X-ray tube: Rotating Anode (tube), Flat detector: Trixell amorphous silicon detector, Detector Area: FD12: 21 cm x 21 cm (8.15" x 8.15") FD17: 30 cm x 30 cm (11.86" x 11.86"), Digital video out: 2 DVI connectors for the live and reference monitor , Matrix size: FD12: 1344 x 1344 pixels FD17: 1956 x 1956 pixels, Pixel pitch: 154 μm, Lowest lateral position: 103 cm / 40.6" ,
