Zenition 30

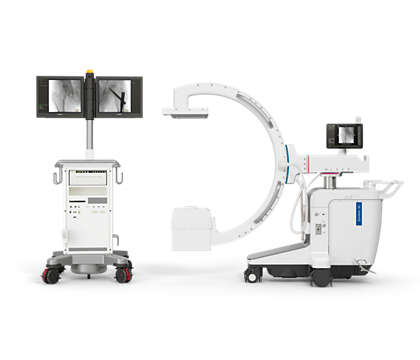

Give your surgical teams simple, more flexible imaging to make fast, informed decisions with the Philips Image Guided Therapy Mobile C-arm System 3000 – Zenition 30. Flat Detector technology along with advanced imaging algorithms and a Personalized IQ feature provide outstanding image quality and dose efficiency, Unique Surgeon Control and the Touch Screen Module empower end users by giving more control, while the Electromagnetic brakes reduce manual effort.

Features

Achieve more user autonomy

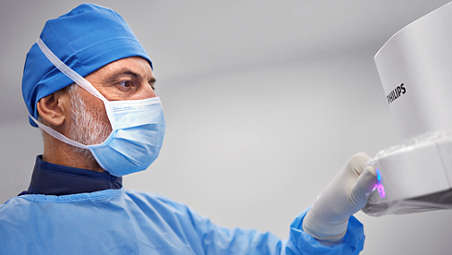

Conveniently position the C-arm from table-side, with the help of controls for Electromagnetic brakes mounted on the surgeon handle on the detector housing. Surgeon Control allows you to simply unlock the brakes by pressing a button, and to position the C-arm quickly. This feature accelerates your surgical workflow and reduces your dependence on surgical staff. 84% of users believe that the combination of the Surgeon Control and the Touch Screen Module can reduce the need for supporting staff.¹ Dedicated pediatric mode

Exam settings enable low dose modes for pediatrics. Imaging and dose settings can be tailored to small objects and pediatric patients by removing the X-ray grid. 84% of users believe the pediatric mode could lead to more confidence in treating pediatric patients.² Reduce manual effort and optimize workflow

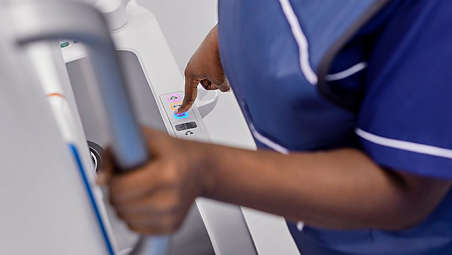

Reduce manual effort to lock and unlock brakes with the controls for the Electromagnetic brakes provided on either side of the C-stand. This further contributes to an improved workflow for the technician, as all the brakes can be released from one place. 98% of users believe that the electromagnetic brakes support an efficient workflow.³ Achieve your economic goals with a reliable system

Zenition 30 comes with a promise of higher uptime over its entire lifecycle thanks to a highly reliable design. Philips Remote Expert Connect enables proactive service, remote diagnosis and resolution further boosting the availability of the system for your busy OR. With our Healthcare Operational Services multi-tier service agreements portfolio, you will be able to address your maintenance challenges and balance your financial goals.

Technical Specifications

X-ray generator: Monoblock 40 kHz high frequency generator, Maximum generator output: 4 kW, X-ray tube: Fixed Anode (tube), Flat detector: Trixell amorphous silicon detector, Detector Area: FD11: 20 cm x 20 cm (7.9" x 7.9"), Advanced DICOM/IHE package⁵: Modality Worklist Mgmt, Modality Performed Procedure Step, Storage Commit , Matrix size: FD11: 1024 x 1024 pixels, Pixel pitch: 200 μm, Free space in C-arm: 765 mm / 30.1" ,
