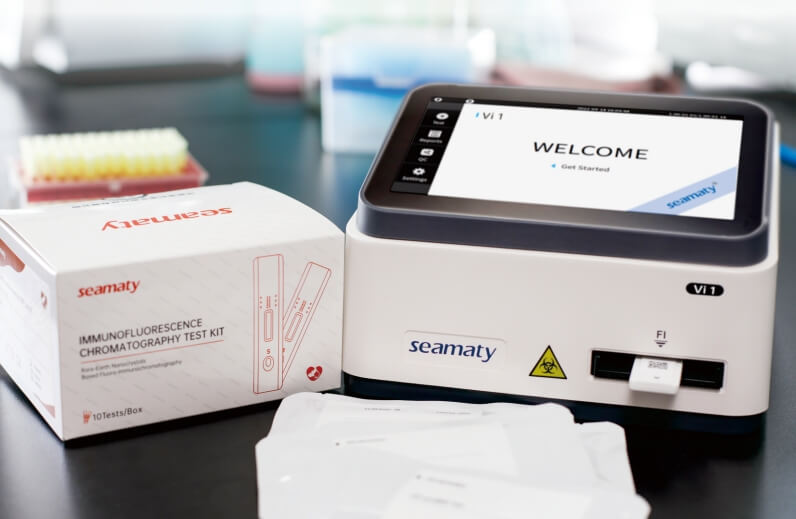

Veterinary Fluorescence Immunoassay Analyzer | Vi1

Whole blood, serum, plasma, secretion etc.

Features

Flexible and Economic

1. Single-disposable test card, no cross-contamination and waste. 2. The sample volume should not exceed 0.1ml. Easy to Use

1. The full automated system without any special requirements for operators. 2. Testing can be performed in several simple steps. Excellent Reagent Performance

1. Stored at 2-40C with a shelf life of 24 months. 2. Not afraid of freezing and high temperature (-30-50'C), easy to transport and store.

Specifications

Sample Type

Whole blood, serum, plasma, secretion etc.

Sample Volume

2.5 - 100μL

Methodology

Fluorescence immunochromatographic assay

Testing Time

4-10 minutes

QC & Calibration

Real-time full-auto finish

Display

7 inch 800*480px

Storage

MAX 500,000

Rated Power

36VA

DC connector

DC 5.5

Power Supply

12V 3A

Connectors

4 USB ports; 1 LAN port

Dimension

240mm*200mm*135mm

Net Weight

1.85KG

Printer

Built-in thermal printer

Operating Environment

Operating temperature: 5-32℃;
Humidity≤85%;
Keep away from strong electromagnetic interference sources;
