Description

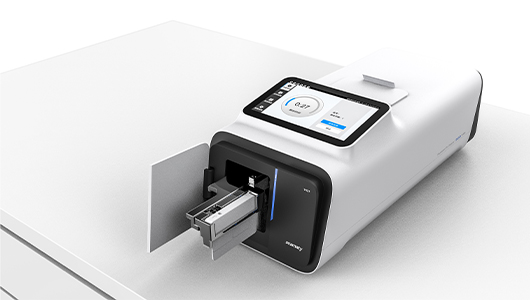

Seamaty VQ1 Fully Automated Nucleic Acid Detection System integrated with real-time fluorescent quantitative PCR technology and patented microfluidic cartridge technology, delivers fast and accurate test results in several simple steps. The closed test cartridge contains freeze-dried reagents to eliminate the complicated liquid mix-and-match and transfers during the detection process, reducing the risk of contamination. VQ1 is equipped with an independent heating and cooling module that achieves an extremely fast temperature change of 8°C per second, which shortens the entire qPCR reaction time. VQ1 provides an effective solution for disease surveillance in clinical diagnostic laboratories, the veterinary field, and the breeding industry.
Features
VQ1 is equipped with an independent heating and cooling module that achieves an extremely fast temperature change of 8°C per second, which shortens the entire qPCR reaction time. VQ1 provides an effective solution for disease surveillance in clinical diagnostic laboratories, the veterinary field, and the breeding industry. Easy to use
Requires no special operating skills with only a few simple steps to obtain a diagnostic result. Fast detection
Quick turn-around time to get accurate test result in 40 minutes. Small size
Compact design saves laboratory space and allows for easy transportation anywhere.
Specifications
Sample Type
Nasopharyngeal swab, eye swab, oral swab, anal swab, pleural effusion etc.
Fluorescent Channel
4 (FAM/HEX/ROX/CY5)
Heating/Cooling Rate
8°C/S
Testing Principle
Real-time fluorescent quantitative PCR
Accuracy of Temperature Control
+-0.5°C
Testing Time
40mins/sample
Storage
500,000 results
Cross Contamination
No
QC & Calibrate
Built-in intelligent quality control
Precision
Cv≤3%
Connectors
4 USB ports, 1 RJ45 network port
Printer
Built-in thermal printer
Barcode
QR code
Voltage
AC220V+-22V 50Hz+-1Hz
Reated Power
120VA
Weight
8 Kg
Dimension (L*W*H)
487mm*220mm*175mm
