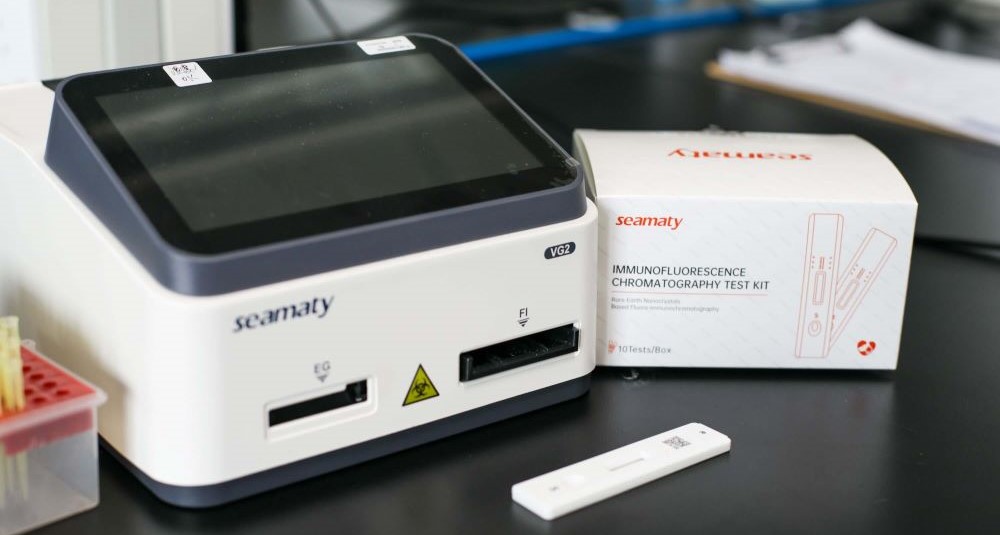

Vet Blood Gas & Immunoassay Analyzer | VG2

Whole blood, serum, plasma, secretion etc.

Features

High Sensitivity

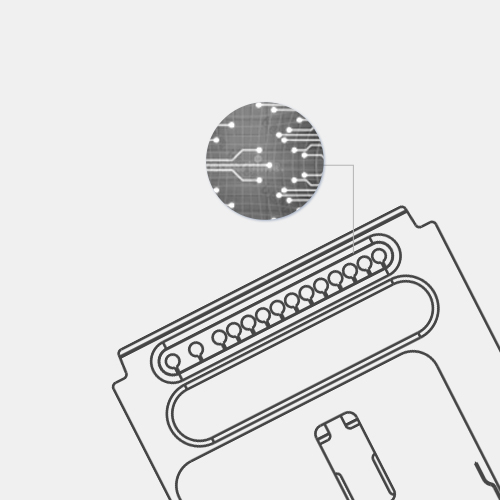

The high light efficiency of the rare-earth nanocrystal with less noise improves the sensitivity. Extremely Stable

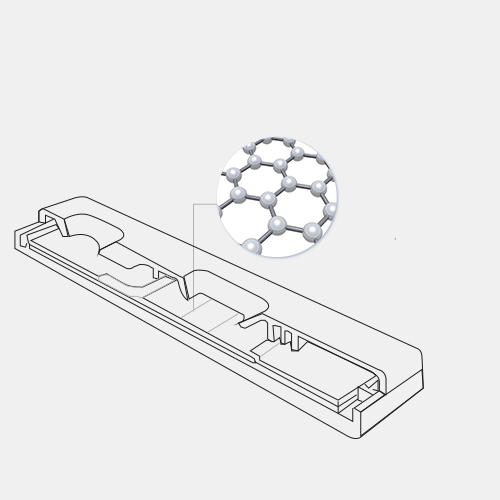

The rare-earth nanocrystal shows a high chemical stability even in an extreme environment. Easy to Use

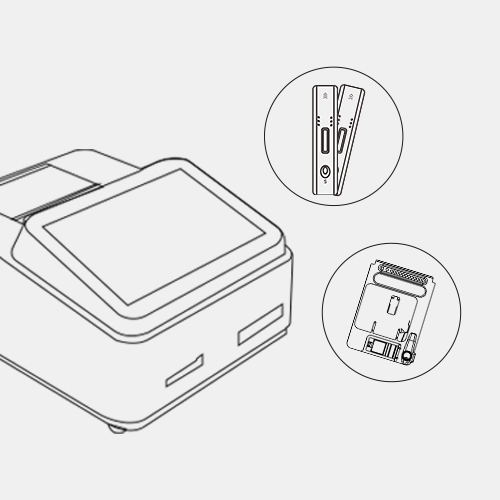

The fully automated system without any special requirements for operators. Testing can be performed in several simple steps

Specifications

Sample Type

Whole blood, serum, plasma, secretion etc.

Sample Volume

2.5 - 100μL

Methodology

Fluorescence immunochromatographic assay; Blood gas electrochemical technology

Testing Time

4-10 minutes

QC & Calibration

Real-time full-auto finish

Display

7 inch 800*480px

Storage

MAX 500,000

Rated Power

36VA

DC connector

DC 5.5

Power Supply

12V 3A

Connectors

4 USB ports; 1 LAN port

Dimension

240mm*200mm*135mm

Net Weight

1.95KG

Printer

Built-in thermal printer

Operating Environment

Operating temperature: 5-32℃;
Humidity≤85%;
Atmospheric pressure: 86.0kPa～106.0kPa;
Keep away from strong electromagnetic interference sources;
