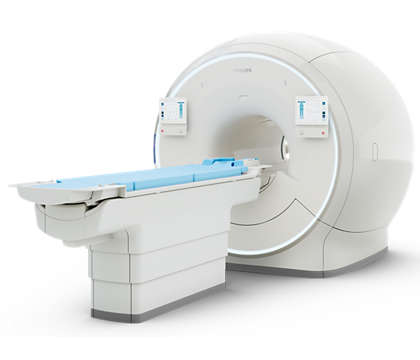

Ingenia Elition 3.0T X

The Philips Ingenia Elition solution offers cutting-edge MR imaging techniques, while setting new standards for clinical research in 3.0T imaging based on gradient- and RF designs. The Ingenia Elition delivers on superb image quality, and performs MRI exams up to 50% faster¹. Fast overall exam-time is achieved by improving patient handling setup time at the bore with the touchless guided patient setup, combined with accelerations in both 2D- and 3D scanning. Furthermore, the Ingenia Elition offers an immersive audio-visual experience to calm patients and guide them through MR exams.

Features:

Diagnostic confidence in neuro oncology

3D APT (Amide Proton Transfer) is a unique, contrast-free, brain MR imaging method. The presence of endogenous cellular proteins is used to produce an MR signal that directly correlates with cell proliferation, an indicator of tumoral activity. 3D APT can enhance your diagnostic confidence. Up to 30% faster DWI images³

With Ingenia Elition’s high-performance gradients diffusion scans are up 30% faster while appearing sharper³. An average of 70% higher contrast resolution can be achieved in diffusion imaging³. SNR is further improved due to a TE up to 15% shorter in diffusion imaging.
Play video

Speed without compromise

Philips SmartSpeed delivers image quality and speed without compromise via award-winning AI technology⁸ and a state-of-the-art Compressed SENSE speed engine. It increases imaging speed by up to a factor of 3⁹, provides up to 65% greater resolution⁹ to deliver outstanding image quality, and is compatible with 97% of clinical protocols¹⁰. It covers motion imaging, imaging near implants, free-breathing imaging and diffusion-weighted imaging to address the needs of a broad range of patients in various conditions.
Play video

Increase productivity with Smart Workflow

Allow your staff to focus less on technology, and fully engage with patients. By reducing and simplifying the number of steps needed for patient preparation, even new operators who have never worked with the scanner can proceed with confidence. Smart Workflow guides and coaches where required and automates where possible achieving high productivity while enabling your staff to focus on patients.

Technical Specifications:

Technische specificaties - Magnet system - Field strength: 3.0T Magnet weight: 4800 kg HeliumSave technology: Yes (Zero boil-off) Cryogen boil-off rate: 0 liter/hour (under regular scanning conditions) Bore design: 70 cm Typical homogeneity V-RMS: ≤ 0.9 ppm (at 45 cm DSV) Maximum FOV: 55 cm Vega HP gradients- Max. amplitude for each axis Max. amplitude for each axis: 45 mT/m Max. slew rate for each axis: 220 T/m/s
