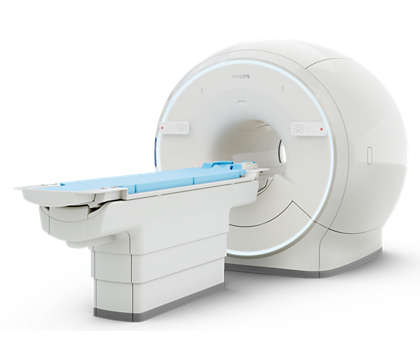

Ingenia Elition 3.0T S

The Ingenia Elition S delivers superb image quality and performs MRI exams up to 50% faster¹. Compressed SENSE accelerates in both 2D- and 3D scanning. High productivity is achieved with the help of imaging capabilities such as SmartExam², 4D Multi-Transmit and ScanWise Implant³. These advances have been made possible by a combination of new gradient and RF designs, plus acceleration technologies like Compressed SENSE. Furthermore, the Ingenia Elition S offers an immersive audiovisual experience to help calm patients and guide them through exams, enhancing the MR experience.

Features:

The basis of 3.0T image quality – Multi-Transmit RF

Philips was the first company to introduce Multi-Transmit RF to 3.0T imaging in 2008. MultiTransmit, with two different RF amplifiers, is standard for Philips 3.0T imaging. This stems from our belief that it is essential to support 3.0T image quality throughout the body. Up to 60% higher spatial resolution

Fully redesigned gradients combined with Compressed SENSE acceleration technology allow up to 60% higher spatial resolution⁶ in the same scan time, revealing more details. This allows you to switch from multi-orientation 2D imaging to a single high-resolution 3D efficient scan.
Play video

Speed without compromise

Philips SmartSpeed delivers image quality and speed without compromise via award-winning AI technology⁸ and a state-of-the-art Compressed SENSE speed engine. It increases imaging speed by up to a factor of 3⁹, provides up to 65% greater resolution⁹ to deliver outstanding image quality, and is compatible with 97% of clinical protocols¹⁰. It covers motion imaging, imaging near implants, free-breathing imaging and diffusion-weighted imaging to address the needs of a broad range of patients in various conditions.
Play video

Increase productivity with Smart Workflow

Allow your staff to focus less on technology, and fully engage with patients. By reducing and simplifying the number of steps needed for patient preparation, even new operators who have never worked with the scanner can proceed with confidence. Smart Workflow guides and coaches where required and automates where possible achieving high productivity while enabling your staff to focus on patients.

Technical Specifications:

Technische specificaties - Magnet system - Field strength: 3.0T Magnet weight: 4800 kg HeliumSave technology: Yes (zero boil-off) Cryogen boil-off rate: 0 liter/hour (under regular scanning conditions) Bore design: 70 cm Typical homogeneity V-RMS: ≤ 0.9 ppm (at 45 cm DSV) Maximum FOV: 55 cm Vega gradients- Max. amplitude for each axis Max. amplitude for each axis: 36 mT/m Max. slew rate for each axis: 160 T/m/s
