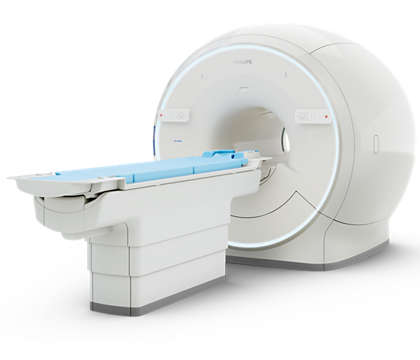

Ingenia Ambition 1.5T S

Based on its new, revolutionary fully sealed BlueSeal magnet, Ingenia Ambition S lets you experience more productive¹ helium-free MR operations. The Ingenia Ambition S delivers superb image quality even for challenging patients, and performs MRI exams up to 50% faster² with Compressed SENSE accelerations for all anatomies, in both 2D- and 3D scanning. Fast overall exam-time is achieved by simplifying patient handling at the bore with the guided patient setup. Furthermore, the Ingenia Ambition S offers an immersive audio-visual experience to help calm patients and guide them through MR exams.

Features:

Play video

Forget about helium with BlueSeal magnet

Philips BlueSeal uses a new micro-cooling technology which requires only a negligible amount (less than 0.5% of today’s volume¹) of liquid helium for cooling. This fraction of the usual amount of liquid helium is placed in the magnet during manufacturing and then fully sealed. As a result, no liquid helium can escape⁶, either suddenly during a loss of field or gradually. Designed to facilitate low siting and other construction costs

BlueSeal magnet does not need a vent pipe, significantly reducing construction costs. Philips BlueSeal is also around 900 kg lighter than its predecessor¹, a decrease in weight that can potentially facilitate easier siting, reduce floor adaptations and further lower construction costs. Play video Speed without compromise Philips SmartSpeed delivers image quality and speed without compromise via award-winning AI technology⁸ and a state-of-the-art Compressed SENSE speed engine. It increases imaging speed by up to a factor of 3⁹, provides up to 65% greater resolution⁹ to deliver outstanding image quality, and is compatible with 97% of clinical protocols¹⁰. It covers motion imaging, imaging near implants, free-breathing imaging and diffusion-weighted imaging to address the needs of a broad range of patients in various conditions. Play video Increase productivity with Smart Workflow Allow your staff to focus less on technology, and fully engage with patients. By reducing and simplifying the number of steps needed for patient preparation, even new operators who have never worked with the scanner can proceed with confidence. Smart Workflow guides and coaches where required and automates where possible achieving high productivity while enabling your staff to focus on patients.

Technical Specifications:

Technische specificaties - Sealed magnet system - Field strength: 1.5T Magnet weight: 2300 kg Micro-cooling technology: Yes Type of magnet controllers: Digital, adaptive intelligent Bore design: 70 cm Typical homogeneity V-RMS: ≤ 0.9 ppm (at 45 cm DSV) Maximum FOV: 55 cm Omega gradients- Max. amplitude for each axis Max. amplitude for each axis: 33 mT/m Max. slew rate for each axis: 120 T/m/s
